A Boiler ID Fan (Induced Draft Fan) is a critical component in industrial boiler systems, designed to maintain proper airflow and ensure efficient combustion by removing flue gases from the furnace. These fans play a vital role in creating negative pressure inside the boiler, which helps in safely exhausting combustion gases through the chimney or stack. Widely used across power plants, manufacturing units, and process industries, Boiler ID Fans are engineered for high performance, durability, and energy efficiency.
What is a Boiler ID Fan?

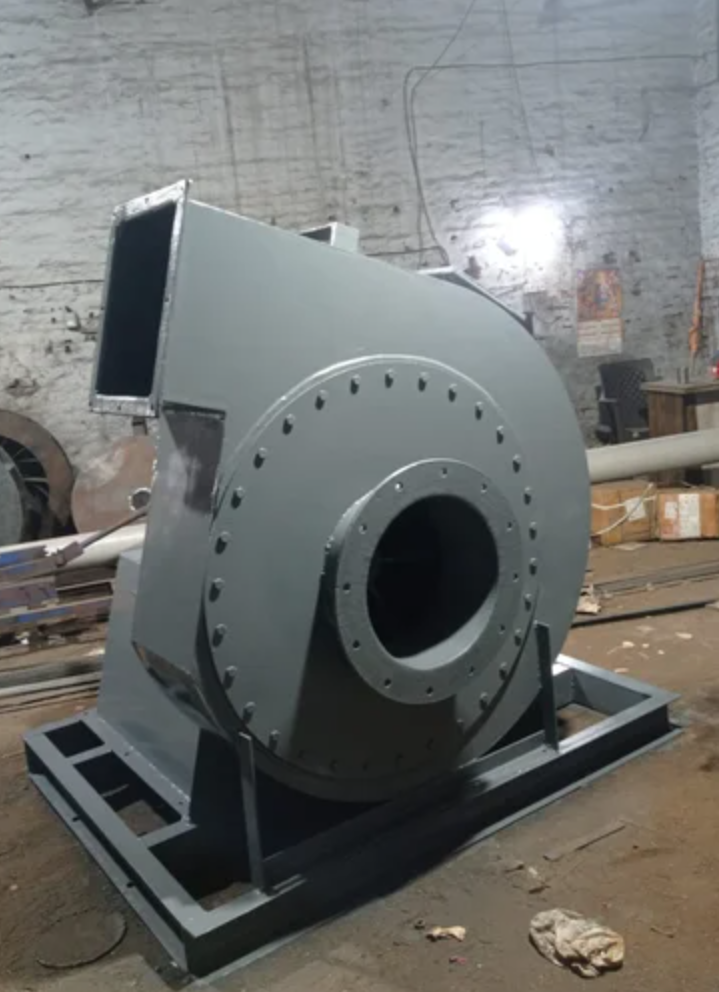

A Boiler ID Fan, also known as an Induced Draft Fan, is a type of centrifugal fan installed near the outlet of a boiler system. Its primary function is to draw flue gases from the furnace and discharge them into the atmosphere via a chimney. By maintaining negative pressure inside the boiler, the ID fan ensures that combustion gases flow smoothly without leakage into the working environment.
These fans are specifically designed to handle high-temperature gases, ash particles, and corrosive elements, making them suitable for demanding industrial applications.
Key Features of Boiler ID Fans
1. Heavy-Duty Construction
Boiler ID Fans are manufactured using robust materials such as mild steel, stainless steel, or alloy steel to withstand high temperatures and abrasive conditions.
2. High Efficiency Performance
Designed with advanced aerodynamic impellers, these fans deliver optimal airflow with minimal energy consumption, improving overall boiler efficiency.
3. Corrosion & Abrasion Resistance
Special coatings and wear-resistant materials are used to protect against corrosive flue gases and particulate matter.
4. High Temperature Handling
Capable of operating in extreme temperatures, typically ranging from 150°C to 400°C or higher, depending on the application.
5. Low Noise & Vibration
Precision balancing and advanced engineering reduce operational noise and vibration, ensuring smooth and quiet performance.
6. Customizable Design
Available in various sizes, capacities, and configurations to meet specific boiler requirements and industrial standards.
Working Principle of Boiler ID Fan
The Boiler ID Fan operates by creating a vacuum or negative pressure inside the furnace. As fuel burns within the boiler, flue gases are generated. The ID fan draws these gases through the boiler tubes, air preheaters, and dust collection systems before expelling them through the chimney.
This continuous removal of gases ensures:
Efficient combustion
Proper heat transfer
Safe operation of the boiler system
Applications of Boiler ID Fans
Boiler ID Fans are widely used in various industries where boiler systems are essential:
Thermal Power Plants – For handling flue gases and maintaining furnace draft
Cement Industry – Exhausting hot gases and dust particles
Steel Plants – Supporting high-temperature processes
Chemical Industry – Handling corrosive fumes and gases
Sugar Mills – Boiler exhaust and ventilation systems
Paper & Pulp Industry – Airflow management in boiler operations
Textile Industry – Steam generation and exhaust systems
Advantages of Using Boiler ID Fans
Improved Boiler Efficiency
By maintaining proper draft conditions, ID fans enhance combustion efficiency and fuel utilization.
Enhanced Safety
Prevents the leakage of harmful gases into the working environment by maintaining negative pressure.
Energy Savings
Modern designs reduce power consumption, leading to lower operational costs.
Long Service Life
Durable construction ensures reliable performance even in harsh industrial conditions.
Environmental Compliance
Supports pollution control systems by efficiently removing flue gases and directing them through filtration systems.
Technical Specifications
Typical specifications of Boiler ID Fans include:
Airflow Capacity: Up to several lakh cubic meters per hour
Pressure: Medium to high pressure
Temperature Handling: Up to 400°C or more
Motor Power: From 5 HP to 500+ HP
Impeller Type: Backward curved or radial blades
Drive Type: Direct drive or belt-driven
Material: Mild steel, stainless steel, or alloy steel
Maintenance and Operational Tips
To ensure optimal performance and longevity of a Boiler ID Fan, regular maintenance is essential:
Inspect impeller blades for wear and dust buildup
Check bearings and lubrication systems regularly
Monitor vibration and noise levels
Ensure proper alignment of motor and shaft
Clean ducts and filters periodically
Replace worn-out components on time
Proper maintenance not only enhances efficiency but also reduces downtime and repair costs.
Why Choose a High-Quality Boiler ID Fan?
Selecting the right Boiler ID Fan is crucial for the overall performance of your boiler system. A well-designed fan ensures efficient gas flow, reduces energy consumption, and minimizes environmental impact. High-quality ID fans are engineered to handle tough industrial conditions while delivering consistent and reliable performance.
Conclusion
A Boiler ID Fan (Induced Draft Fan) is an indispensable part of any industrial boiler system. Its ability to maintain proper airflow, ensure safe exhaust of flue gases, and improve combustion efficiency makes it a key component in modern industrial operations. Whether used in power plants, manufacturing units, or process industries, investing in a high-performance Boiler ID Fan guarantees improved efficiency, safety, and long-term reliability.
For industries aiming to optimize boiler performance and meet environmental standards, a robust and efficient Boiler ID Fan is the perfect solution.
